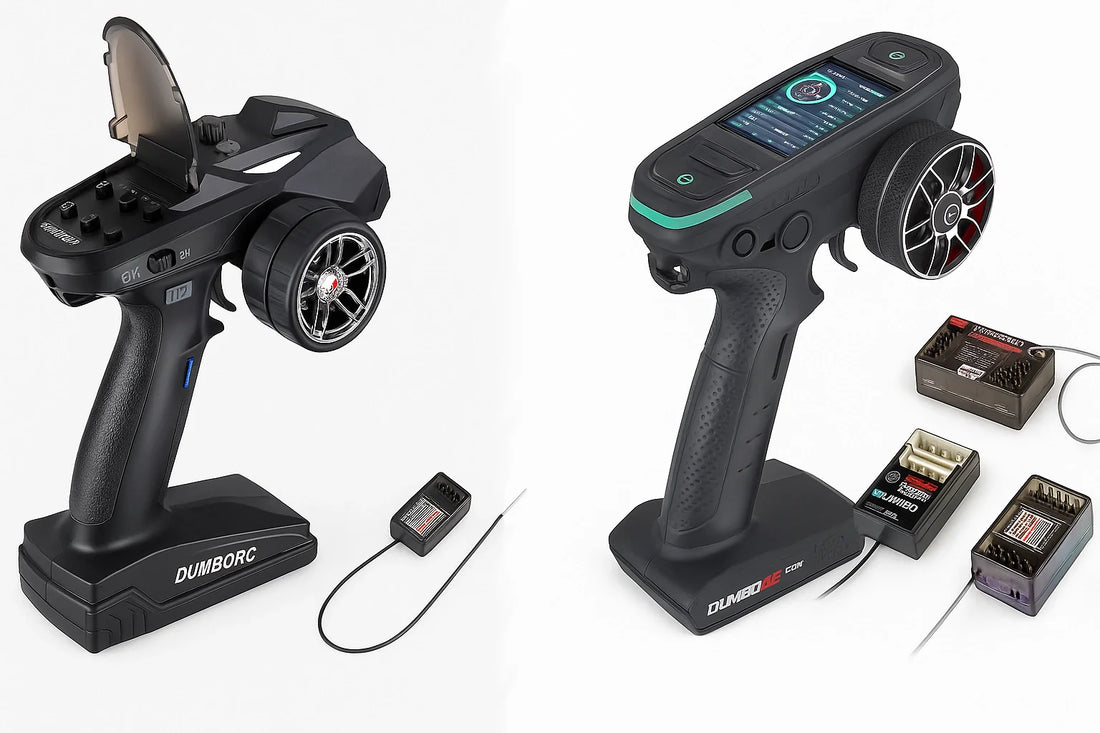

How Hobby-Grade RC Controllers Work (And what differs from Toy-Grade)

How Hobby-Grade RC Controllers Work (And what differs from Toy-Grade)

If you’ve only ever used toy-grade RC cars, the first time you pick up a proper hobby-grade transmitter it can feel confusing. Suddenly there are trims, dual rates, end points, and your car doesn’t slam straight into reverse when you pull the trigger back.

And that’s a good thing.

At The Truck Monster, every vehicle we sell uses proper proportional, hobby-grade radio systems — because they give you far more control, far more realism, and far more protection for your drivetrain.

Here’s how they actually work, in clear, real-world terms.

How Throttle, Brake & Reverse Really Work

On a hobby-grade RC car, the brake and reverse functions are deliberately separated for mechanical safety.

Here’s the correct sequence:

  1. You’re driving forward

  2. You push the trigger back slightly → BRAKE activates

  3. You return the trigger to neutral

  4. You push back again → REVERSE engages

This prevents you from instantly slamming a spinning drivetrain from full forward into full reverse — which would:

  • Strip gears

  • Twist driveshafts

  • Shock load diffs

  • Destroy spur/pinion meshes

  • Overstress motors and ESCs

Toy-grade cars usually allow instant reverse, which is one of the biggest reasons they break so easily.

Hobby-grade cars protect themselves.

Why Brake Strength Matters

Many ESCs allow adjustable brake strength, typically from:

  • 25% → soft braking

  • 50% → balanced

  • 75–100% → very aggressive stopping

Too much brake can:

  • Lock tyres

  • Flip light cars forward

  • Shock the drivetrain

Too little brake:

  • Extends the stopping distance

  • Makes precision driving harder

Bashers tend to like stronger brakes.
High-speed on-road cars usually prefer softer braking for stability.

What Is Proportional Control?

Hobby-grade controllers are fully proportional, meaning:

  • Half trigger = half throttle

  • Full trigger = full throttle

  • Same for steering

Toy-grade controllers are often:

  • On or off

  • Full lock left or full lock right

  • Full power or nothing

Proportional control gives you:

  • Smooth acceleration

  • Controlled braking

  • Fine steering inputs

  • Predictable handling

  • Way better drifting and crawling

This is one of the biggest reasons hobby-grade RC “feels real”.

What Are Trims? (Steering & Throttle Trim Explained)

Trim knobs allow you to fine-tune your neutral position.

Steering Trim

If your car pulls left or right when driving straight, you adjust the steering trim until it tracks perfectly straight.

Throttle Trim

Used to correct slight forward creep or brake drag when the trigger is at neutral.

Once set, your car should:

  • Sit still at neutral

  • Track straight when driving

Trims fix tiny mechanical and servo tolerances automatically.

What Is Dual Rate (DR)?

Dual Rate controls how far something moves at full input.

Most commonly used for steering.

For example:

  • 100% DR = full steering lock

  • 70% DR = softer, less aggressive steering

  • 50% DR = very gentle response

Why this matters:

  • Beginners can reduce steering aggression

  • High-speed driving becomes more stable

  • Crawlers can increase steering throw for tighter turning

  • Drift cars benefit from tuned steering sensitivity

Dual rate does not change the centre position — only the maximum range.

What Are End Points (EPA)?

End Point Adjustment (EPA) tells the servo:

“This is the furthest you’re allowed to go.”

It prevents:

  • Servo over-travel

  • Binding

  • Gear stripping

  • Overloading steering systems

For example:

  • Too much EPA → servo hits steering stops and strains

  • Correct EPA → full lock with zero binding

Proper EPA setup:

  • Makes servos last longer

  • Improves steering accuracy

  • Protects linkages

  • Improves battery life

Most RTR hobby cars are factory set safely, but EPA is hugely important when upgrading servos.

What Is Drag Brake? (And Why Crawlers Love It)

Drag brake is automatic braking when you release the throttle.

Instead of free-rolling, the motor actively resists movement.

Typical drag brake values:

  • 0% = free-rolling

  • 25% = light hold

  • 50% = strong hold

  • 100% = full electronic handbrake

This is useful for crawlers because:

  • The car won’t roll downhill

  • You can stop mid-climb

  • Precision control on steep terrain

  • Better rock crawling realism

Most dedicated crawlers use a drag brake by default.

Failsafe: The Hidden Safety Net

Most proper hobby-grade radios have a failsafe, which activates if:

  • Signal is lost

  • Battery dies

  • You drive out of range

Failsafe typically:

  • Applies brake or at least kills the throttle

  • Centres steering

  • Stops the car safely

Toy-grade cars often have no failsafe at all, which is why they sometimes drive off uncontrollably when the signal drops.

Throttle Curves (Advanced Feature)

Some advanced radios let you shape how throttle power is delivered:

  • Soft at the bottom

  • Aggressive mid-range

  • Full power at the top

This allows:

  • Better low-speed control

  • Reduced wheelspin

  • More predictable launch

  • Better drifting consistency

Most RTR systems don’t allow adjustable throttle curves, but higher-end transmitters do.

2.4GHz Radio: Why It Matters

All modern hobby-grade systems use 2.4GHz digital radio:

  • No crystals

  • No frequency clashes

  • Stable signal

  • Long range (100–300m+)

  • Automatic binding

  • Multiple cars can run together with no interference

Toy-grade systems often still use low-power transmitters with limited range and high interference.

Why Hobby-Grade Controllers Protect Your RC Car

Everything in a proper transmitter system is designed to:

  • Protect gearboxes

  • Protect diffs

  • Protect motors

  • Protect ESCs

  • Protect servos

  • Improve control

  • Improve safety

  • Extend lifespan

Toy-grade controllers are designed around cost, not longevity.

Final Thoughts: The Controller Is Just as Important as the Car

People often focus only on motors and batteries — but the controller and ESC logic are just as important.

Hobby-grade control systems can give you:

  • True braking before reverse

  • Fully proportional throttle

  • Adjustable steering response

  • Safe servo limits

  • Drag brake for crawling

  • Failsafe protection

  • Interference-free control

This is why every RC car sold by The Truck Monster uses proper hobby-grade proportional radio gear — because great cars need great control.
